Junction Power Relay KDR-E2

[Direct connection]

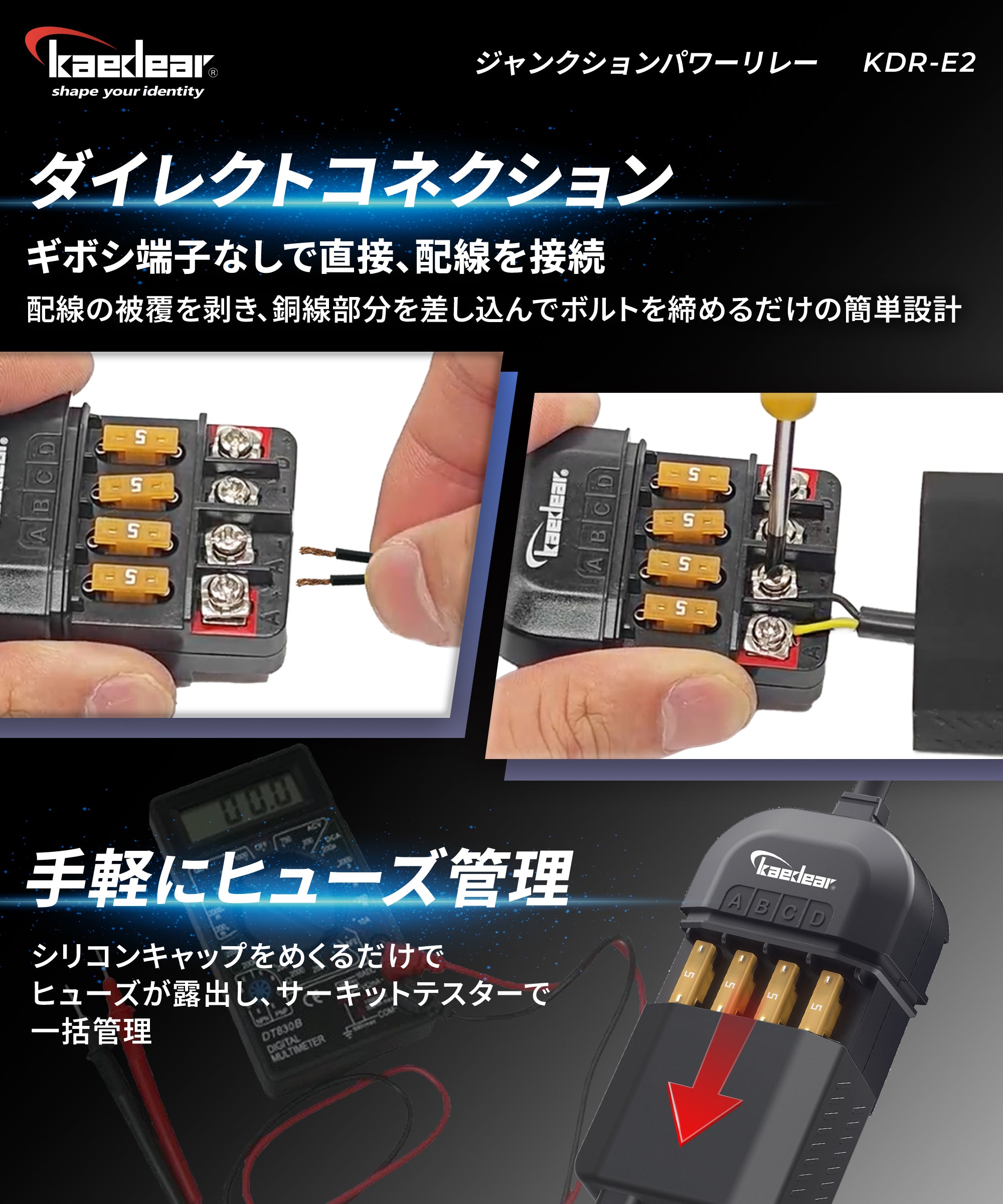

Each of the four output terminals can be directly wired without using bullet terminals. Simply strip the wiring, insert the copper wire, and tighten the bolts. Once installed, you can add additional electrical equipment without the need for electrician's pliers or crimp terminals.

【Features】

✅ Easy connection: Simply plug in the stripped wires and tighten the bolts.

✅ Compact design: Easy to install in tight spaces such as under the seat.

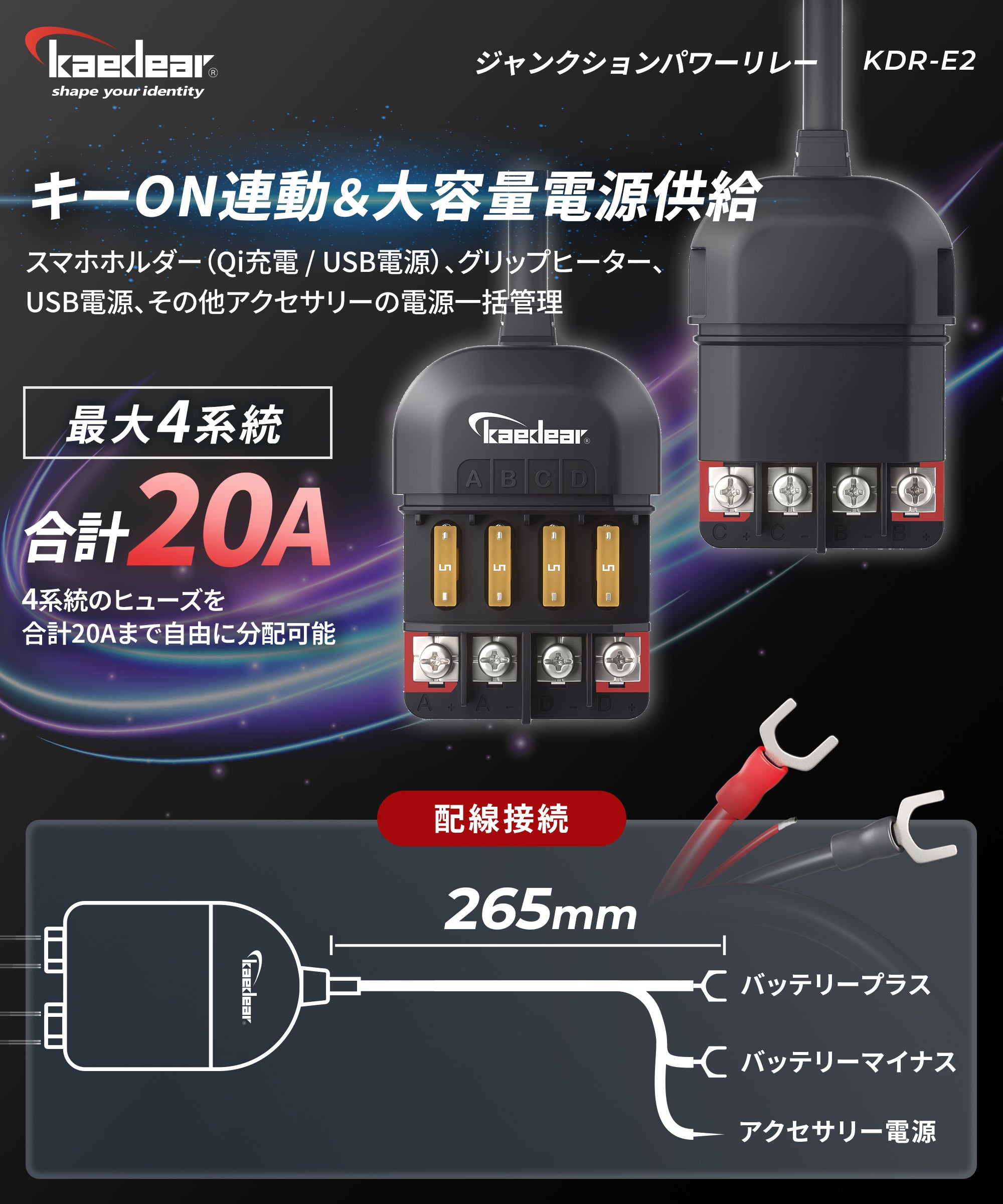

✅ Key-ON interlocking & large capacity power supply: Using the ACC power supply, A total of 20A can be distributed to up to 4 systems.

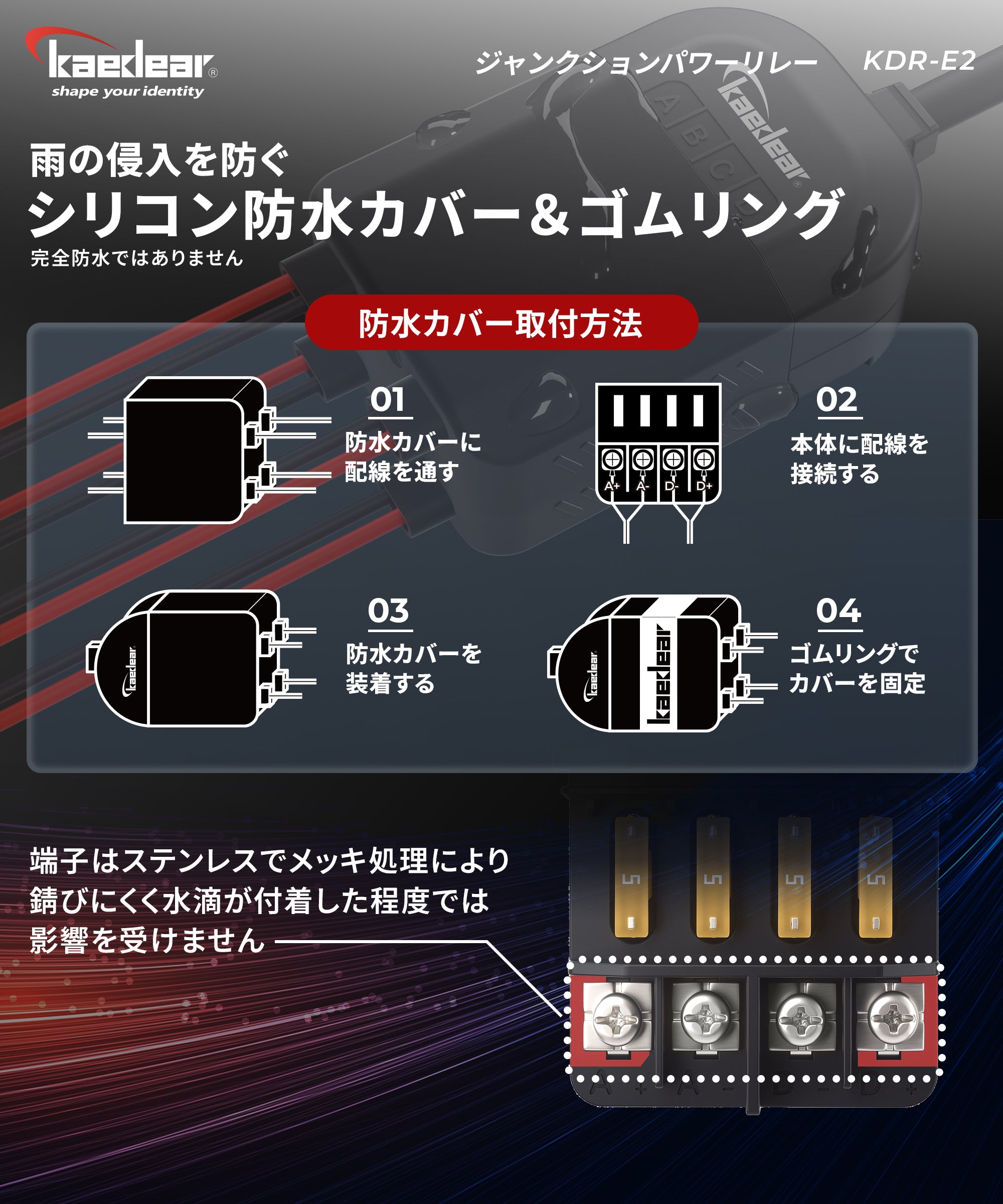

✅ Waterproof silicone cap: Prevents rain from getting in (not completely waterproof). Install the cable facing downwards to allow water to drain.

✅ Easy fuse management: Simply flip the silicone cap to expose the fuses, allowing you to manage them all at once with a circuit tester.

✅ Ideal for managing electrical equipment all in one place: Convenient for managing the power supply of smartphone holders (Qi charging/USB power), heated grips, USB power supplies, and other accessories.

[Note]

⚠ To prevent submersion in water, make sure to install the cable facing downwards.

⚠ The terminals are rust-proof, but corrosion may occur depending on the usage environment.

⚠ Low-profile fuses are easily damaged, so handle them carefully when removing them.

[Product Specifications]

Input voltage: 12-16V

Maximum output: 4 lines total 20A

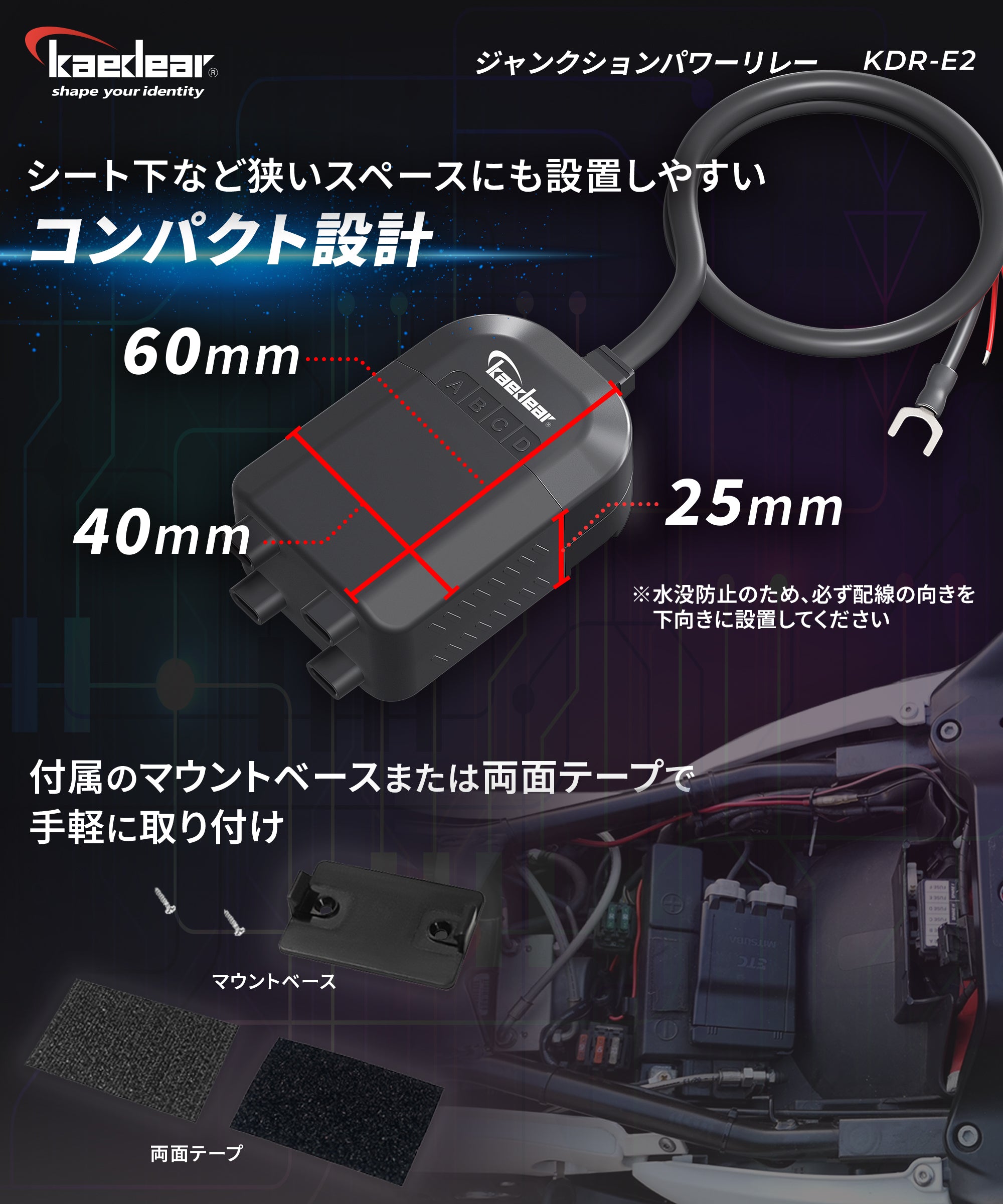

■ Body size: 60 x 40 x 25 mm

■Wiring length: 265mm

■Material: Polycarbonate

■Connection method: Battery +, -, ACC (accessory power)

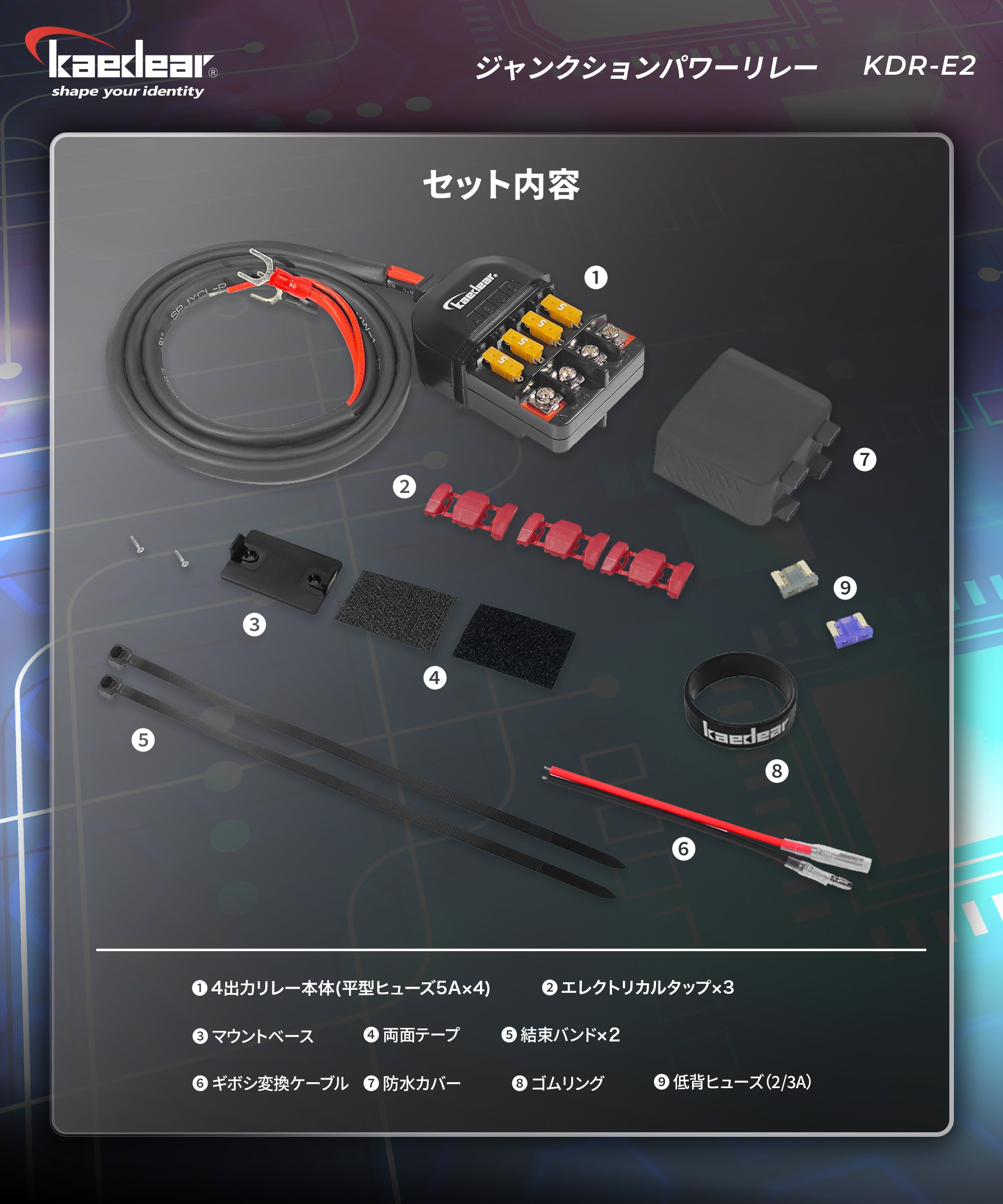

■Accessories: 4-output relay body (5A fuse x 4), bullet adapter cable, electrical tap x 3, mounting base, double-sided tape, cable ties x 2, waterproof cover, rubber ring, low-profile fuse (2A / 3A)

■Instruction manual (online only): As part of our decarbonization efforts to reduce our environmental impact, we will refrain from enclosing a paper copy. You can view or download the instruction manual from each product page on the Kaedear official website.

[Manufacturer's warranty]

■ Manufacturer's Warranty Period: 1 year (expires on the same day as the purchase date) Kaedia provides after-sales support to ensure customer satisfaction. Our nationally certified staff are available to assist with product inquiries and motorcycle installation, providing expert advice. In the unlikely event that a defect is diagnosed as being due to a product defect, we will review the issue based on our manufacturer's warranty policy and provide free repair or replacement under the manufacturer's warranty. For commercial use, the manufacturer's warranty period will be reduced by half (e.g., if the manufacturer's warranty period is 1 year, it will be reduced to 6 months, expiring on the same day as the purchase date). For details, please see the manufacturer's warranty policy on our official website. We also provide support after installation and use. As a Japanese manufacturer, we offer a warm and hospitable service. Please feel free to contact us.
