Dash Cam KDR-D811
Ranked #1 on Amazon
（*As of October 2025）- Regular price
-
¥37,780 - Regular price
-
- Sale price
-
¥37,780
Tax included.
Shipping calculated at checkout.
⚠︎Instruction Manual (Online Only): As part of our decarbonization efforts to reduce environmental impact, we no longer include printed manuals in the package. You can view or download them from each product page on the official Kaedear website.
【Ride Record - Light】
A monitor-less dash cam designed to preserve the aesthetic of your motorcycle. The main unit can be stored under the seat or in a similar space, and you can check the operating status via the status remote controller. Only discreet components like the front/rear cameras, GPS, and status remote are exposed, keeping your motorcycle looking pristine. Even on bikes with limited under-seat space, such as cruisers, the entire system—including the main unit—is IP67 waterproof rated, so you don't have to worry about rain, road spray, or water ingress during washings. Detailed dash cam settings can be configured using the Kaedear app on your smartphone.
【SONY STARVIS IMX-307 / Nationwide LED Signal Compatible 27.5FPS】
Equipped with the SONY STARVIS IMX307 image sensor for bright, clear recording even at night. It features a 6G full-glass lens, AR optical film, 2MP resolution (1920x1080), 27.5FPS, F1.8 aperture, and a 150° field of view. The 27.5fps frame rate is used to avoid syncing with the LED signal frequencies of Eastern (50Hz) and Western (60Hz) Japan, which helps prevent signal flicker. The sensor supports HDR/WDR to correct issues like overexposure from headlights or underexposure when entering tunnels. It excels in low-light conditions, recording nighttime footage brighter and clearer than the naked eye. *MicroSD card: Max 128GB/Class 10 UHS-I U3. *SONY STARVIS is a registered trademark of Sony Group Corporation. *Depending on the LED signal frequency and the unit's recording cycle, signals may appear to flicker or be off in the recordings.
【Features】
■Parking Surveillance: When ignition is off, it detects impacts, draws power from the constant power supply, and records for 30 seconds. *If the vehicle is not ridden for long periods or the battery is degraded, dark current may prevent the engine from starting.
■G-Sensor: 3-level sensitivity adjustment. The sensitivity for automatic file locking and parking surveillance can be adjusted independently.
■Wi-Fi: Download recorded data via Wi-Fi without removing the microSD card. GPS data can be displayed on a map for your recorded videos.
■GPS: Records travel speed, longitude, and latitude based on GPS data.
■Speeding Alert: Notifies the driver when a set speed is exceeded.
■Low Voltage Alert: Notifies the driver when the voltage drops below a set level.
■Status Remote: Check operational status (Recording/GPS/Wi-Fi/Front Signal/Rear Signal/Speeding/Low Voltage) via indicators while enabling file locking and photo capture.
■Kaedear App: Allows formatting, setting loop recording duration, and other detailed configurations.

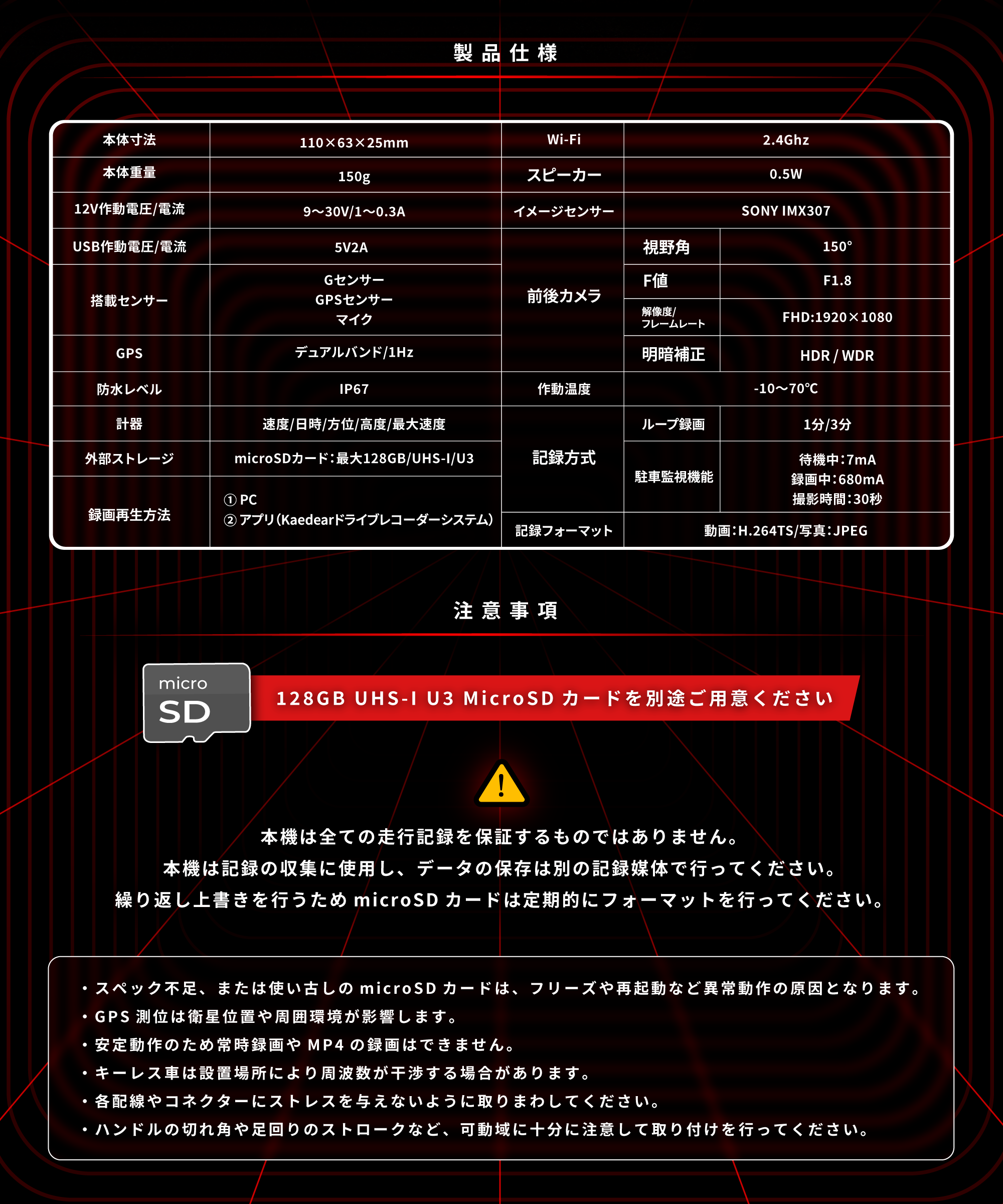

【Product Specifications】
■Unit Size: 110mm (H) x 63mm (W) x 25mm (D)
■Input Voltage: 5V2A
■Power: DC9-30V/0.3–1A
■Parking Surveillance: Standby: 7mA, Recording: 680mA, Recording time: 30 seconds
■Camera: SONY STARVIS IMX307
■Functions: Low voltage alert (only with vehicle power adapter), Speeding alert, Parking surveillance, GPS location, G-sensor impact detection, Microphone recording (when remote is connected), Super capacitor backup, Beep alerts, Front/Rear cameras, Loop recording (1/3 min), Kaedear app Wi-Fi support
■Waterproof Level: IP67 (Main unit, Status Remote, Cameras, GPS, Adapter, Connectors)
*Comes with two power options: a constant/ACC/negative vehicle power adapter and a USB (5V2A) connector. Parking surveillance and low voltage alerts are not available when using the USB (5V2A) connector.

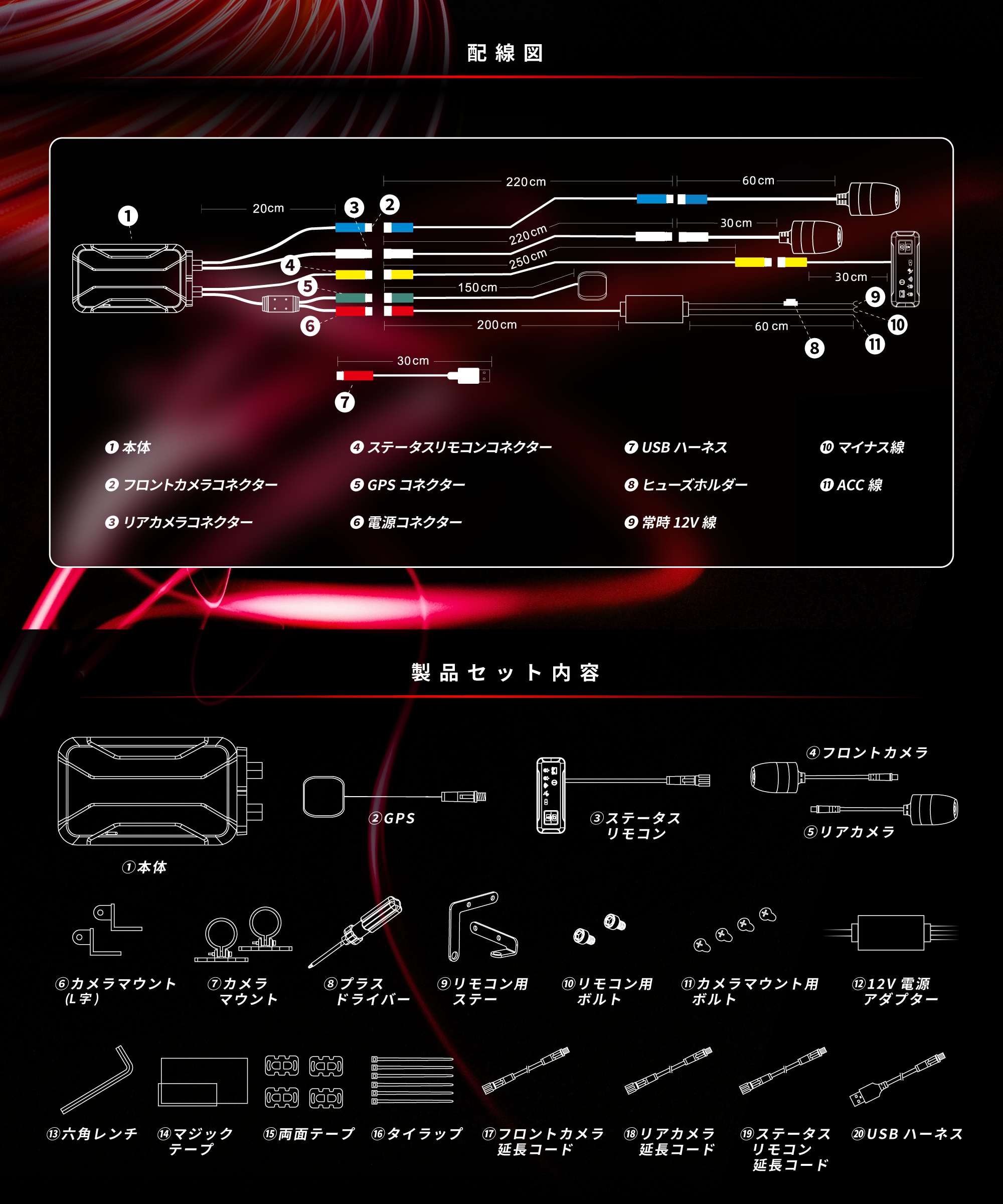

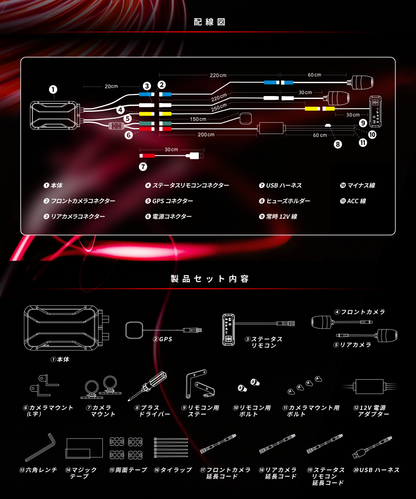

*【Wiring Diagram】 ①Main unit (20cm wire) ②Front camera (220cm extension + 60cm wire) ③Rear camera (220cm extension + 30cm wire) ④Status remote (250cm extension + 30cm wire) ⑤GPS (150cm wire) ⑥Vehicle power (200cm extension + 60cm wire) ⑦USB harness (30cm wire) ⑧Fuse holder ⑨Constant 12V line ⑩Negative line ⑪ACC line
*【Included Accessories】 ①Main unit ②GPS ③Status remote ④Front camera ⑤Rear camera ⑥Camera mount (L-shaped) x2 ⑦Camera mount x2 ⑧Phillips screwdriver (for SD slot) ⑨Remote bracket ⑩Remote bolt ⑪Camera mount bolts ⑫12V power adapter ⑬Hex wrench ⑭Velcro strips (for unit/remote) ⑮Double-sided tape (for camera mounts) ⑯Cable ties ⑰Front camera extension cord ⑱Rear camera extension cord ⑲Status remote extension cord ⑳USB harness
*If you plan to install cameras on a license plate or fork, or install the GPS around the handlebars, please consider the following optional mounts: Model numbers: KDR-YX101R, KDR-YX101L, KDR-YX102R, KDR-YX102L, KDR-YX201R, KDR-YX201L, KDR-YX301R
【Technical Conformity Mark】R214-240489. This product has passed the technical standards compliance test under the Radio Law and displays the technical conformity mark.
【Usage Precautions】・This unit does not guarantee recording of all driving situations. Troubles may occur where footage is not recorded due to various conditions such as microSD card status or severe impact from accidents. ・Use this unit for collecting records and promptly move necessary data to another storage medium. ・MicroSD cards require regular formatting or replacement as they are constantly overwritten. ・Using substandard or old microSD cards may cause malfunctions such as freezing or rebooting. ・GPS positioning is affected by satellite location and surrounding environment. ・For stable operation, constant recording and MP4 recording are not supported. ・On keyless vehicles, radio waves may interfere depending on the installation location. ・Route all wiring so as not to apply stress to connectors. Ensure enough slack for handlebar movement and suspension travel during installation.
【Manufacturer Warranty】 ■Warranty Period: 1 year (expiring on the same date one year after purchase). Kaedear provides support even after sale to ensure customer satisfaction. If you have questions about the product or need installation advice, our staff includes certified mechanics ready to provide expert guidance. If a malfunction is diagnosed as a manufacturing defect, we will repair or replace the product for free in accordance with our warranty policy. For commercial use, the warranty period is halved (e.g., if the standard period is 1 year, it becomes 6 months, expiring on the same day 6 months later). See our official website for full details. We provide support even after installation and use. As a Japanese manufacturer, we serve you with the spirit of "Omotenashi" (hospitality). Please feel free to consult us first.
