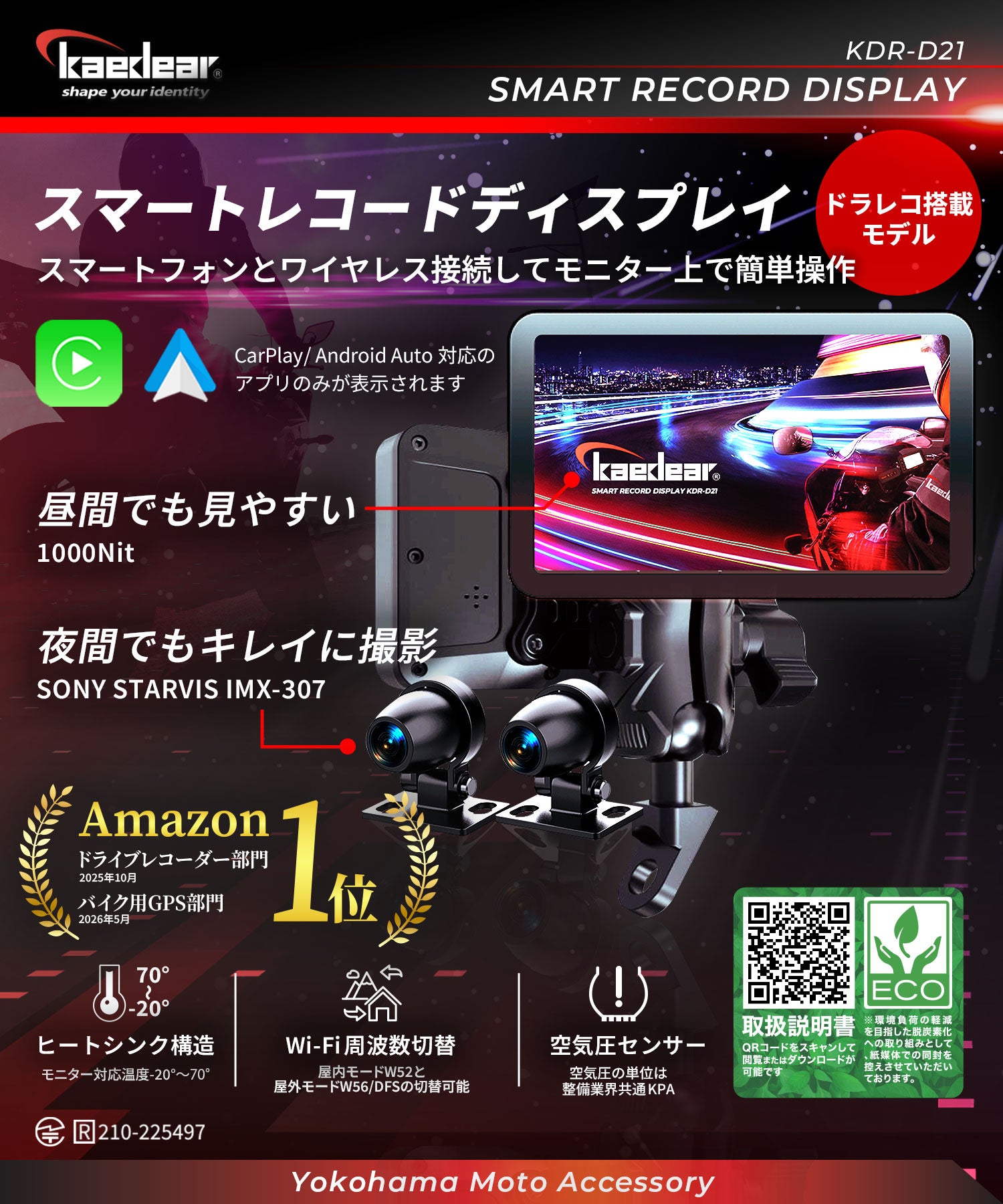

Smart Record Display KDR-D21

[Smart Record Display]

■Compatible with CarPlay/Android Auto ● 5 GHz Wi-Fi (Indoor W52 and outdoor W56 DFS mode selectable) *Compatible with and without a roof.

*W56DFS is a 5GHz Wi-Fi frequency that can be used outdoors, and DFS is a technology to avoid interference with radio waves such as weather radar. There is a waiting time of about 1 minute when connecting, and it may reconnect during use. Indoor W52 has no waiting time and is not affected by external radio waves.

■iPhone Requirements: iPhone 6S or later / iOS 13 or later.

■Android Requirements: Android 11 or later (Budget smartphones may not be able to connect.)

■Connection Method: When you connect via Bluetooth, it will connect to Wi-Fi and automatically disconnect Bluetooth. Automatic connection will occur from the next time onwards.

*Mobile data connection required.

■Intercom Connection Method: Connect to your smartphone to use. *This product is a mirroring monitor. The smartphone acts as the PC, and the monitor and intercom connect to the smartphone as peripheral devices, like a PC monitor or speakers.

■Technical Compliance Number: R210-225497 / R220-JP7521

[Drive Recorder]

■ Loop recording: 1/3/5 minutes *Continuous recording cannot be set to prevent problems.

■ Recording Format: Video H.264 TS *MP4 cannot be set to prevent problems.

■ Event Recording: When the G-sensor detects an impact, it automatically locks the recording and prevents it from being overwritten.

■ Parking Surveillance Function: Standby 0.001W, Recording 10W, Recording Time 10 seconds

■microSD card: Up to 256GB/UHS-I U3

■Playback methods: Device/PC/Smartphone app

■GPS: 5Hz Dual Band *Acquires twice as much positional information compared to single band.

■ Recording: ON/OFF

■ Timestamp: ON/OFF

[Camera]

■ Image Sensor: SONY STARVIS IMX-307 *Excellent night vision capabilities, recording nighttime footage brighter and clearer than the naked eye.

■ Brightness and Contrast Correction: HDR/WDR *Corrects overexposure in backlighting and loss of detail in shadows in tunnels.

■ Viewing angle: 136°

■F-value: 1.8

■Resolution: FHD (1920 x 1080P / 2 million pixels)

■ Frame rate: 27.5fps *Compatible with LED traffic signals nationwide.

[Monitor]

■ Monitor: 4.5 inches

■ Body dimensions: 119.2 x 73.4 x 26.1 mm

■Waterproof level: Rain-proof, IP67 (monitor, camera, GPS, etc.)

■LCD: IPS Touch Panel *Excellent touch sensitivity and less susceptible to rain.

■ Brightness: 1000 Nit *Ensures clear viewing even during bright daytime touring.

■Operating Temperature: -20 to 70°C *The heat sink on the back of the monitor efficiently dissipates heat.

■ Speaker: 8W

■HUD: Speed / Date/Time / Direction / Air Pressure / Altitude / Maximum Speed

■Mount: 1-inch ball / Air mount *Compatible with your existing 1-inch ball mount, reduces shock and engine vibration, and improves product life.

■Operating Voltage/Power: DC9-36V/10W *Compatible with 12V/24V battery vehicles.

Wiring

■ Power harness: 200cm (constant power, ACC, negative)

■ Front Camera: 100cm

■ Rear Camera: 290cm

■GPS: 150cm

*Please note that dark current may occur. If the vehicle will not be driven for an extended period, connect both the constant power and ACC wires to the ACC power source.

[Other Setting Functions]

■ Air Pressure Sensor: Air pressure unit KPA/Bar, temperature unit ℃/°F *KPA is the standard unit in the maintenance industry *Regular replacement of the button battery is required. Frequent attachment and detachment will wear out the sensor gasket.

■ Rear Camera: ON/OFF

■ Volume/Brightness: Manual adjustment *No automatic adjustment function.

■ Sound Output: Output can be switched between smartphone (intercom) or monitor. *This device is a monitor that projects the output of smartphone CarPlay and Android Auto. Restrictions on usable apps and specifications may change due to firmware updates such as iOS. Also, the intercom is connected to the smartphone via Bluetooth, and this device is connected to the smartphone via Wi-Fi.

■ Clock: The accurate time is displayed by GPS positioning or connecting to a smartphone. There is no backup function.

■BSD Rear View Monitoring System (Millimeter Wave Radar) KDR-D201

■ Firmware: Please update via the official website using a microSD card for firmware updates, or via the download version. *If the power is accidentally cut off during an update, the device may become unable to power on. Recovery is required using a microSD card for firmware updates. (Recovery is not possible with the download version.)

[Precautions for Use]

* This device does not guarantee the recording of all driving data. Various conditions, such as the state of the microSD card or strong impacts from an accident, may cause problems resulting in the failure to record driving data.

* This device is used for collecting recordings, so please transfer the necessary recorded data to another recording medium as soon as possible.

- Because it involves repeated overwriting, the microSD card requires regular formatting or replacement with a new one.

* Secure the air pressure sensor with a double nut. Check for air leaks using a spray bottle with a drop of detergent.

* Insufficient specifications or a worn-out microSD card may cause abnormal operation, such as freezing or restarting.

* GPS positioning is affected by satellite position and the surrounding environment.

* For stable operation, continuous recording or MP4 recording is not possible.

* Keyless vehicles may experience frequency interference depending on the installation location.

* In outdoor mode, there is a waiting time of about 1 minute when connecting, and reconnection may occur during use.

* Please note that some low-cost smartphone models may not connect smoothly. Please try it out with our display model.

*CarPlay and Android Auto apps are not functions of this device.

* Voice commands cannot be used while using Android Auto. This is due to Android 's specifications and cannot be changed by this product.

[If CarPlay/Android Auto fails to connect]

- Please try updating your OS to the latest version.

* It may be caused by interference from a security app. Please try turning it off.

* The Wi-Fi automatic protection feature (when using a VPN) may affect the connection with some devices and applications. Please try temporarily disabling the VPN settings or uninstalling the related app.

- "au Wi-Fi Access" may be the cause. Please try uninstalling it.

- Please try clearing the Android Auto cache. All Apps > Android Auto > Storage and Cache > Clear Cache.

If your iPhone won't connect to CarPlay, try disconnecting your VPN. Check in Settings > General > VPN & Device Management.

- Please update Android Auto to the latest version on Google Play.

- Some budget smartphones are incompatible with W56DFS and cannot connect to Android Auto. Please try connecting indoors under a roof using indoor mode W52.

【Accessories】 ①Main unit monitor ②GPS ③Mirror mount (1-inch ball diameter/10mm hole diameter) ④Bar mount (1-inch ball diameter/32mm clamp diameter) ⑤Attachments (12mm/22mm/25.4mm) ⑥Main unit monitor mount (1-inch ball diameter/vibration-absorbing Air mount) ⑦Intermediate security mount (for 1-inch ball/60mm length) ⑧Cable ties ⑨Hex wrench ⑩Various bolts ⑪Spanner (for tire pressure sensor) ⑫Locking nut ⑬Rubber tape ⑭Tire pressure sensor ⑮Double-sided tape (for camera mount) ⑯Phillips screwdriver (for SD card slot) ⑰Vehicle 12V adapter ⑱Camera (camera mount included)

■ Instruction Manual (Online Only): As part of our efforts towards decarbonization to reduce environmental impact, we have decided to refrain from including a paper copy. You can view or download it from the product page of each product on the Kaedear official website.

[Manufacturer's Warranty]

■ Manufacturer's Warranty Period: 1 year (expires on the same day as the purchase date)

At Kaedia, we will continue to support you even after the sale to ensure your satisfaction. If you have any questions about our products, or if you would like to consult us about installing them on your motorcycle, we have staff members who hold national mechanic certification, so we can accurately address your questions regarding specialized knowledge. In the unlikely event that the malfunction is diagnosed as being due to a product defect, we will review the case based on our manufacturer's warranty policy and will repair or replace the product free of charge under the manufacturer's warranty. When used for business purposes, the manufacturer's warranty period will be halved (e.g., if the manufacturer's warranty period is 1 year, it will be 6 months, and the expiration date will be the same day as the purchase date plus 6 months). For details, please see the manufacturer's warranty policy on our official website. We will assist you even after installation or after you have started using the product. As a Japanese manufacturer, we will respond with a spirit of hospitality. Please feel free to contact us with any questions.
