Now accepting pre-orders for the Smart Record Eye KDR-BH2 motorcycle head-up display

[Minimize eye movement while riding]

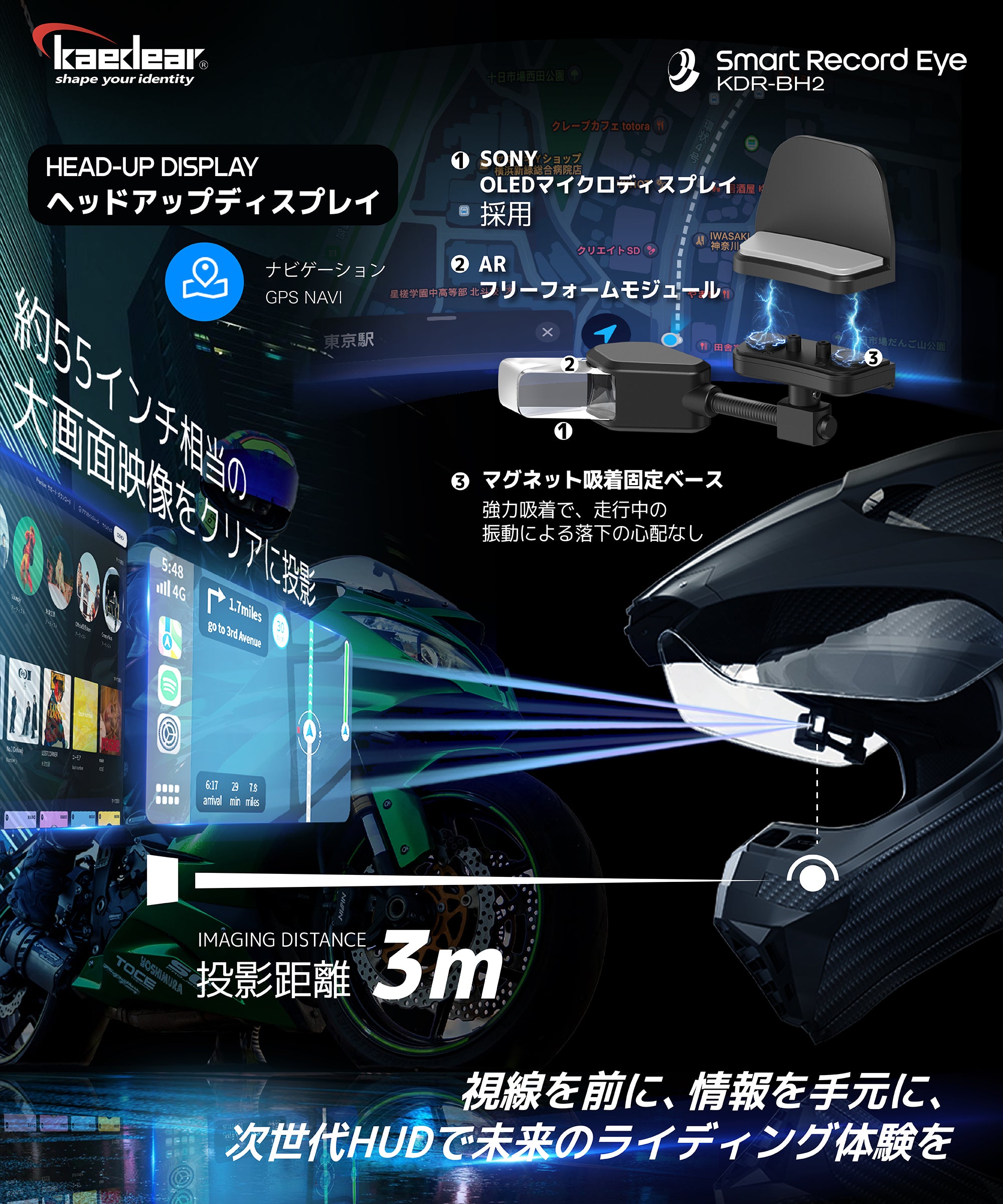

Smart Record Eye is a smart monitor with a head-up display that also features video recording and intercom functions. While driving, it displays navigation, music, calls, speed, and rear-view information to support driving, all within your field of vision, allowing you to keep your eyes on the road. Compared to conventional monitors, it requires less eye movement and supports voice commands, enabling safe and intuitive information access. Using an OLED panel and automatic brightness adjustment, the screen always maintains a clear and easy-to-view state. It can also be used by people who wear glasses. *Note: Interference may occur depending on your helmet and glasses.
■ Display Brightness: 3000 nits ■ Brightness: Manual Adjustment / Automatic Adjustment ■ Viewing Distance: 3m
■ Image Size: Equivalent to 55 inches ■ microSD Card: Up to 64GB / Class 10 UHS-I U3 (1 card included)

[Maintain your beloved car's appearance and solve the problem of owning multiple cars with just one device]

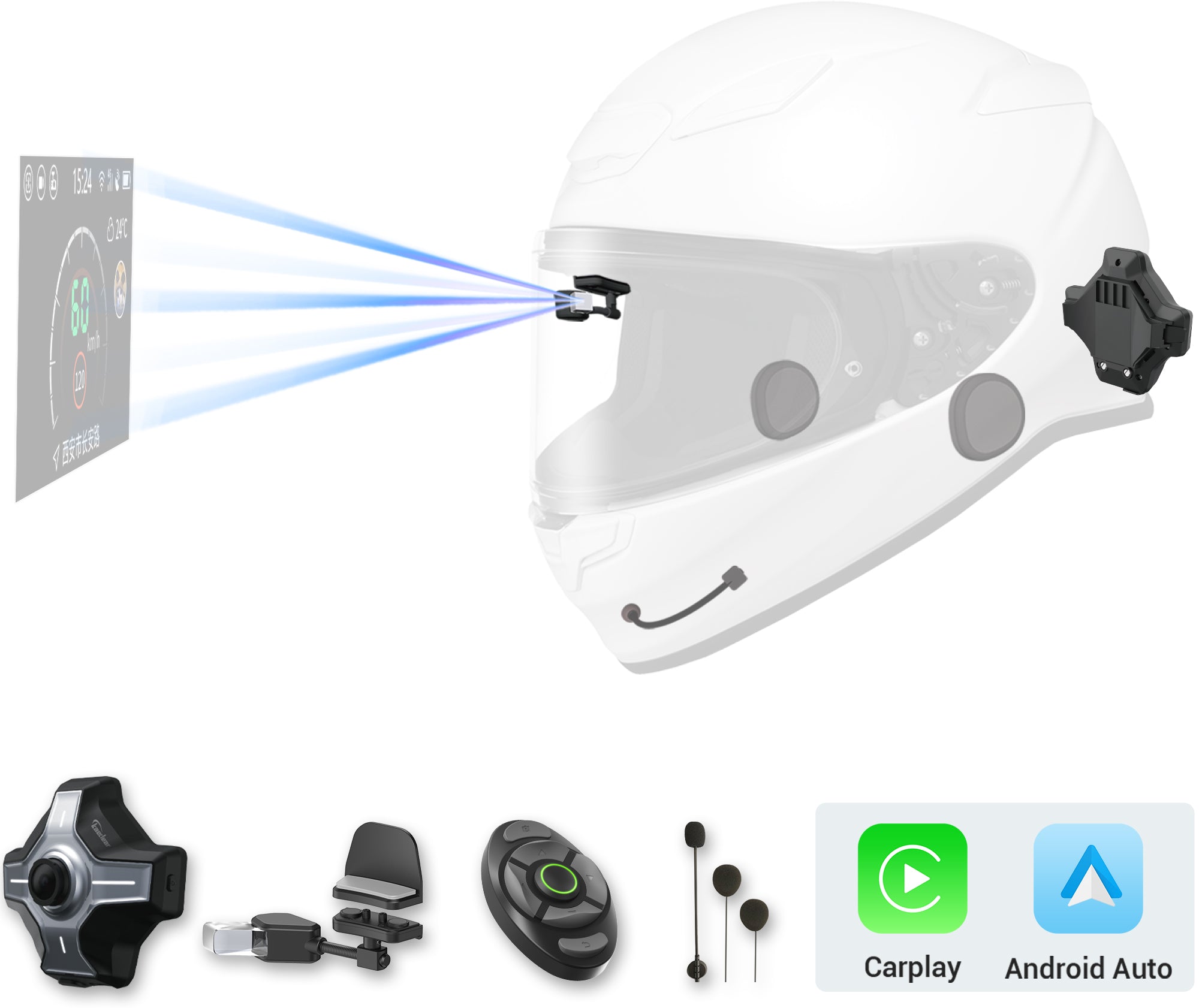

🏍️ Perfect for motorcycles where a monitor might not look out of place, such as classic bikes or cafe racers. Helmet-mountable, it's also convenient for riders who own multiple motorcycles. For multiple helmets, you can attach separately sold mounting bases and headsets, allowing you to move the main unit and head-up display. It can be attached to various helmets, including full-face, jet, and half helmets. *Separately sold individual parts are scheduled to be released soon. *Headsets may not be compatible with all half helmets. The head-up display function can be used even without a headset.

[Dual-Mode Bluetooth & Mesh Intercom Equipped 🎧]
① Mesh intercom function (Bluetooth/up to 9 devices): Multiple people can freely join and leave, enabling comfortable communication even on large group tours.
② Mobile communication connection (up to 15 devices): Uses mobile data communication through the app for stable communication over a wide area, without being affected by distance or obstacles.
③ Transceiver connection: Can connect to an external Bluetooth-compatible transceiver, enabling stable communication even in areas with poor radio wave conditions.
④ Interoperability with existing intercoms: Connect to other companies' intercoms via Bluetooth to output music and navigation audio to your own device.

■ Noise Cancelling: ADSP
■ Speaker: 40mm
■ Maximum communication distance: 4km
■Bluetooth: Dual-mode (smartphone/remote control/intercom/external devices)
■ Connecting other companies' intercoms: Possible via Bluetooth (up to 1 device) or via the app.

[CarPlay & Android Auto compatible 📱]
You can seamlessly operate navigation, music, and calls.
It can be operated with a wireless remote control with physical buttons, or with voice commands. It solves the inconvenience of operating the device in the rain, which is difficult with a touchscreen, and allows operation even with gloves that are not compatible with touchscreens.
● 5 GHz Wi-Fi (switchable between indoor W52 and outdoor W56 DFS modes)
* Available with or without a roof.
*W56DFS is a 5GHz Wi-Fi frequency that can be used outdoors, and DFS is a technology to avoid interference with radio waves such as weather radar. There is a waiting time of about 1 minute when connecting, and it may reconnect during use. Indoor W52 has no waiting time and is not affected by external radio waves.
● 2.4 GHz has a lower communication speed, but it can be used without being affected by indoor or outdoor environments.
■iPhone Requirements: iPhone 6S or later / iOS 13 or later.
■Android Requirements: Android 11 or later (Budget smartphones may not be able to connect.)
■Connection Method: When you connect via Bluetooth, it will connect to Wi-Fi and automatically disconnect Bluetooth. Automatic connection will occur from the next time onwards.
*Mobile data connection required.
*This product is connected to your smartphone as a peripheral device.

[Ensure rear visibility with a backup camera]
By using a rear camera to secure forward visibility while constantly monitoring the traffic situation behind and around the vehicle, blind spots are reduced and safety is improved.
You can obtain important surrounding traffic information without diverting your attention. The camera can be manually adjusted up and down, accommodating various riding positions.
*Front and rear driving footage can be recorded by installing a separately sold front camera.
■Resolution: 2 Megapixel (FHD 1920 x 1080)
■ Frame Rate: 27.5 FPS
■ Wide-angle lens: 120°
■ Viewing angle adjustment: 20° up and down
■ Recording: Loop recording ■ Correction: HDR/WDR
■GPS: 1Hz
■ Recording Media: MicroSD Card

[Product Contents]
■CPU: 8-core (1.8 GHz)
■RAM: 2GB
■ Battery: 1400mA (approx. 3-4 hours of continuous use *1.5-2 hours in recording mode), *4000mA (sold separately) (approx. 8-12 hours of continuous use *3-4 hours in recording mode) *Actual usage time may vary depending on usage conditions. *While it is possible to use while charging, waterproofing is based on the dedicated cable (KDR-MB4000/KDR-MX335 integrated type). When using a general-purpose mobile battery, waterproofing cannot be maintained, so please be careful not to get it wet.
■How to operate: Dedicated app, wireless remote control, voice command,
■ Dedicated App: iPhone (Download from the App Store), Android (Download from the official website)
■ Waterproof level: IPX66

■Firmware Update: Connect this device to Wi-Fi and perform an OTA update . *Depending on inventory status, the firmware may not be the latest version. Please check the version and update before use.
*Please check the official website for the latest information.

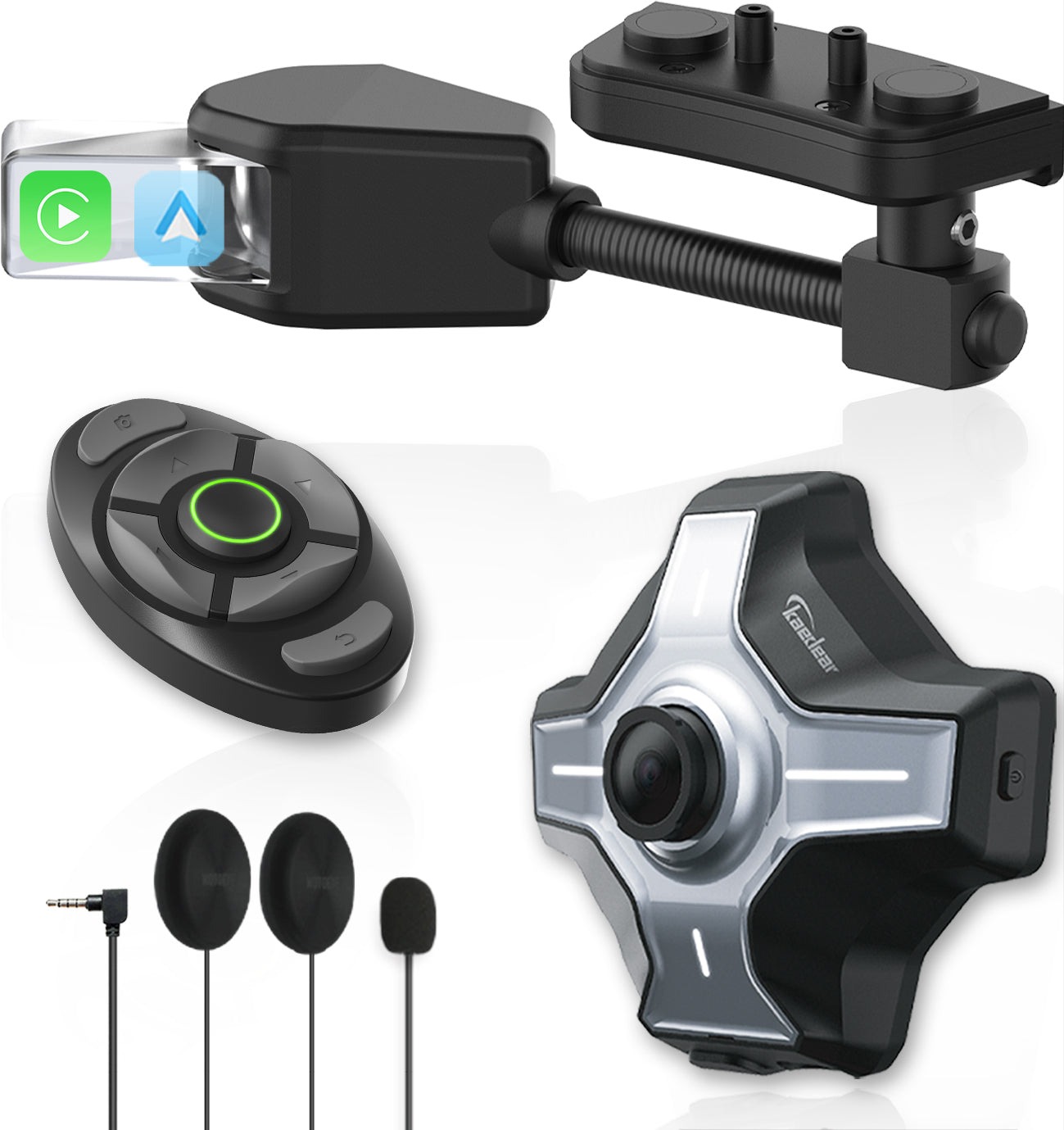

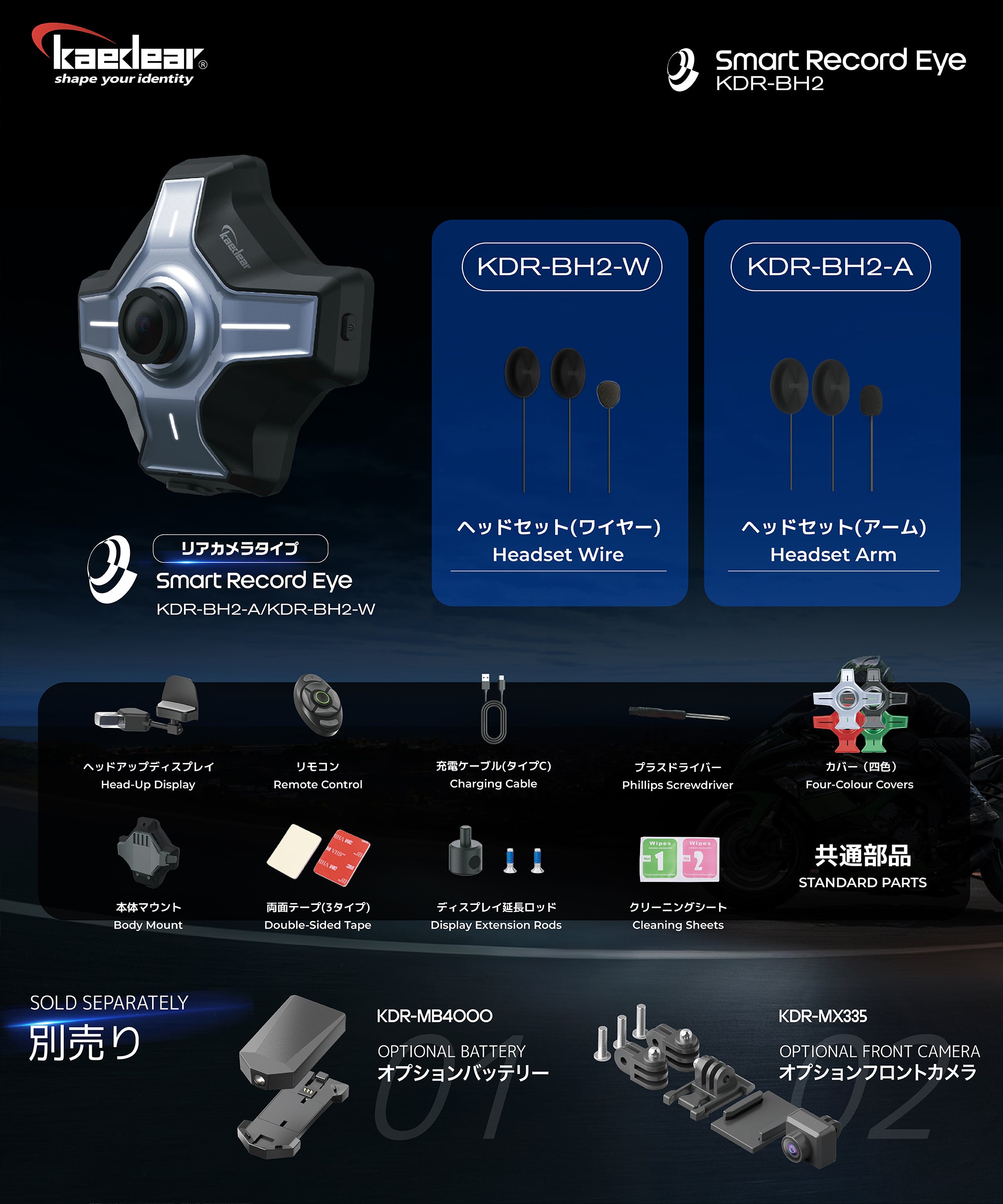

■Set Contents: Main unit, main unit mounting base, head-up display, display mounting base, headset (arm microphone or wired microphone), wireless remote control, remote control mount, color panel, display extension rod, Phillips head screwdriver, double-sided tape, cleaning supplies, USB charging cable, MicroSD card (64GB)

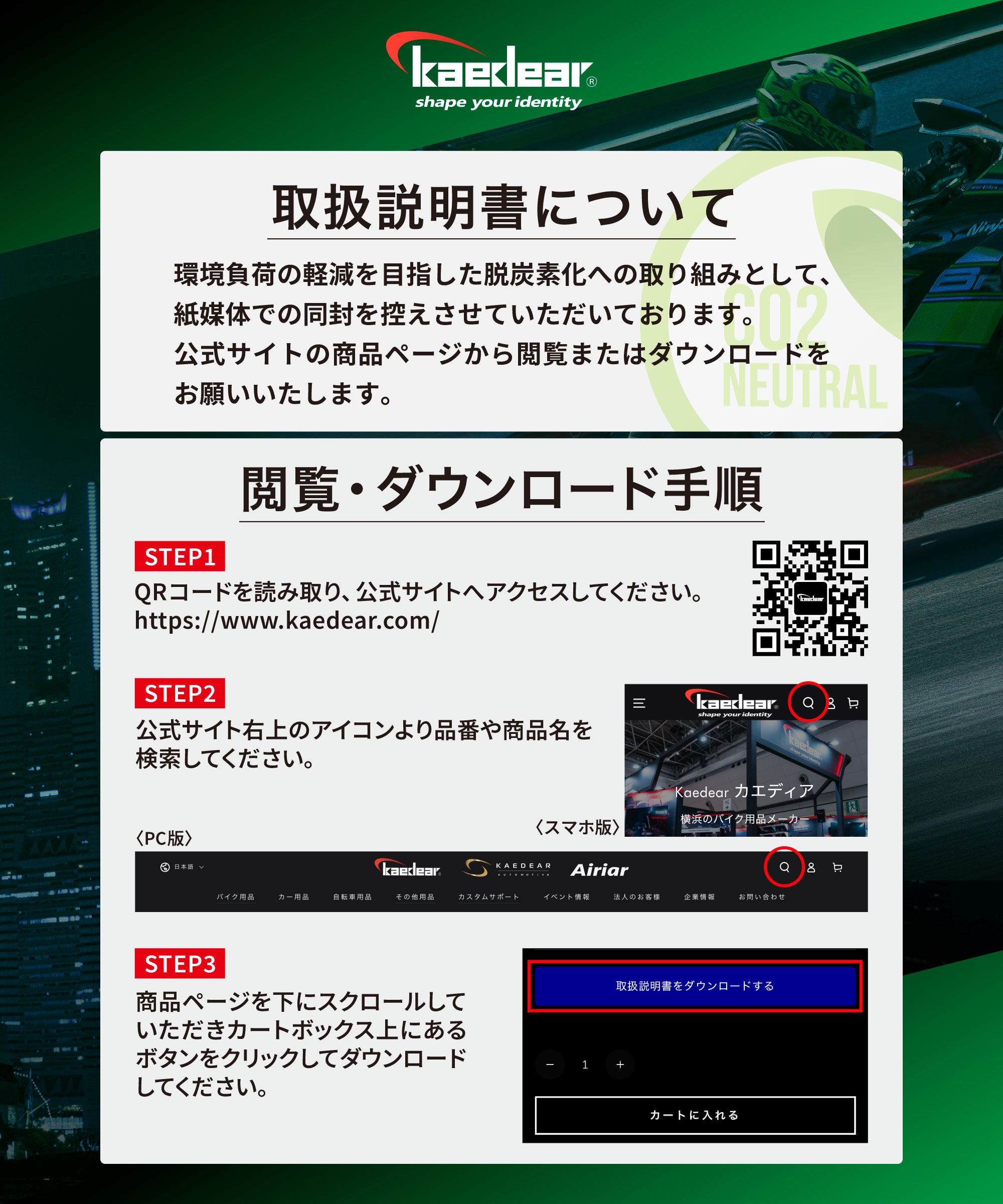

■ Instruction Manual (Online Only): As part of our efforts towards decarbonization to reduce environmental impact, we have decided to refrain from including a paper copy. You can view or download it from the product page of each product on the Kaedear official website.

[Manufacturer's Warranty]
■ Manufacturer's Warranty Period: 1 year (expires on the same day as the purchase date)
At Kedia, we provide support even after the sale to ensure customer satisfaction. We have staff with national mechanic certification, so we can accurately address any questions about our products or consultations regarding installation on your motorcycle. In the unlikely event that a malfunction is diagnosed as being due to a product defect, we will review it based on our manufacturer's warranty policy and will repair or replace it free of charge under the manufacturer's warranty. For commercial use, the manufacturer's warranty period will be halved (e.g., if the manufacturer's warranty period is 1 year, it will be 6 months, with the deadline being 6 months added to the month of purchase). See the manufacturer's warranty policy on our official website for details. We will assist you even after installation and use. As a Japanese manufacturer, we will respond with a spirit of hospitality. Please feel free to contact us.

[Precautions for Use]
* This device does not guarantee the recording of all driving data. Various conditions, such as the state of the microSD card or strong impacts from an accident, may cause problems resulting in the failure to record driving data.
* This device is used for collecting recordings, so please transfer the necessary recorded data to another recording medium as soon as possible.
- Because it involves repeated overwriting, the microSD card requires regular formatting or replacement with a new one.
* Insufficient specifications or a worn-out microSD card may cause abnormal operation, such as freezing or restarting.
* GPS positioning is affected by satellite position and the surrounding environment.
* Keyless vehicles may experience frequency interference depending on the installation location.
* In outdoor mode, there is a waiting time of about 1 minute when connecting, and reconnection may occur during use.
* Please note that some low-cost smartphone models may not connect smoothly. Please try it out with our display model.
*CarPlay and Android Auto apps are not functions of this device.

[If CarPlay/Android Auto fails to connect]
- Please try updating your OS to the latest version.
* The issue may be caused by interference from a security app. Please try turning it off.
* The Wi-Fi automatic protection feature (when using a VPN) may affect the connection with some devices and applications. Please try temporarily disabling the VPN settings or uninstalling the related app.
- "au Wi-Fi Access" may be the cause. Please try uninstalling it.
- Please try clearing the Android Auto cache. All Apps > Android Auto > Storage and Cache > Clear Cache.
- Uninstall and reinstall Android Auto
* If CarPlay won't connect on your iPhone, try disconnecting your VPN. Check in Settings > General > VPN & Device Management. * Update Android Auto to the latest version in Google Play.
- Some budget smartphones are incompatible with W56DFS and cannot connect to Android Auto. Please try connecting indoors under a roof using W52 mode.

[Product Delivery Time]

This will be a pre-order sale.

We plan to start shipping around November 2025 .

We will arrange delivery in order of reservation.

*Cancellations are not possible after placing an order and making a payment.

*Please note that the delivery schedule may vary depending on logistics conditions.

[KDR-BH2 Smart Record Eye Dedicated App]
Download page (Android/iOS )

[Optional]

KDR-MB4000 (Battery)

KDR-MX335 (Front Camera)

KDR-MP01 (Air Pressure Sensor)

[Aftermarket Parts]

KDR-BH2 Aftermarket Parts
